30-Amp 5-Stage PWM Charge Controller

PART NUMBER: ZS-30A

Our 30-amp charge controller can regulate up to 510 watts and is compatible with lithium, gel, AGM, conventional lead-acid (wet), and calcium batteries.

30-Amp Charge Controller Specs:

  • Watts:  510

  • Amps: 30

  • Lithium Compatibility: Yes

  • Remote Display Compatible: Yes

  • Battery Temperature Sensor Compatible: Yes

  • Mounting Options: Surface or Flush Mount

*Fulfilled by our Zamp Certified Dealer “Specialized Products”


Protects and Regulates
All our charge controllers use pulse width modulation (PWM) and five stages of charging to regulate the flow the electricity to your battery. This protects your battery from overcharging, expands your battery’s lifespan, and keeps your panel safe from backflow electrical currents, among many other protections and benefits.

Monitors and Indicates
Its large digital display lets you monitor battery voltage, charging current, charging capacity (amps per hour), battery types, full charge, and system faults. Colored LEDs indicate operational status and battery conditions.

Flexible and Customizable

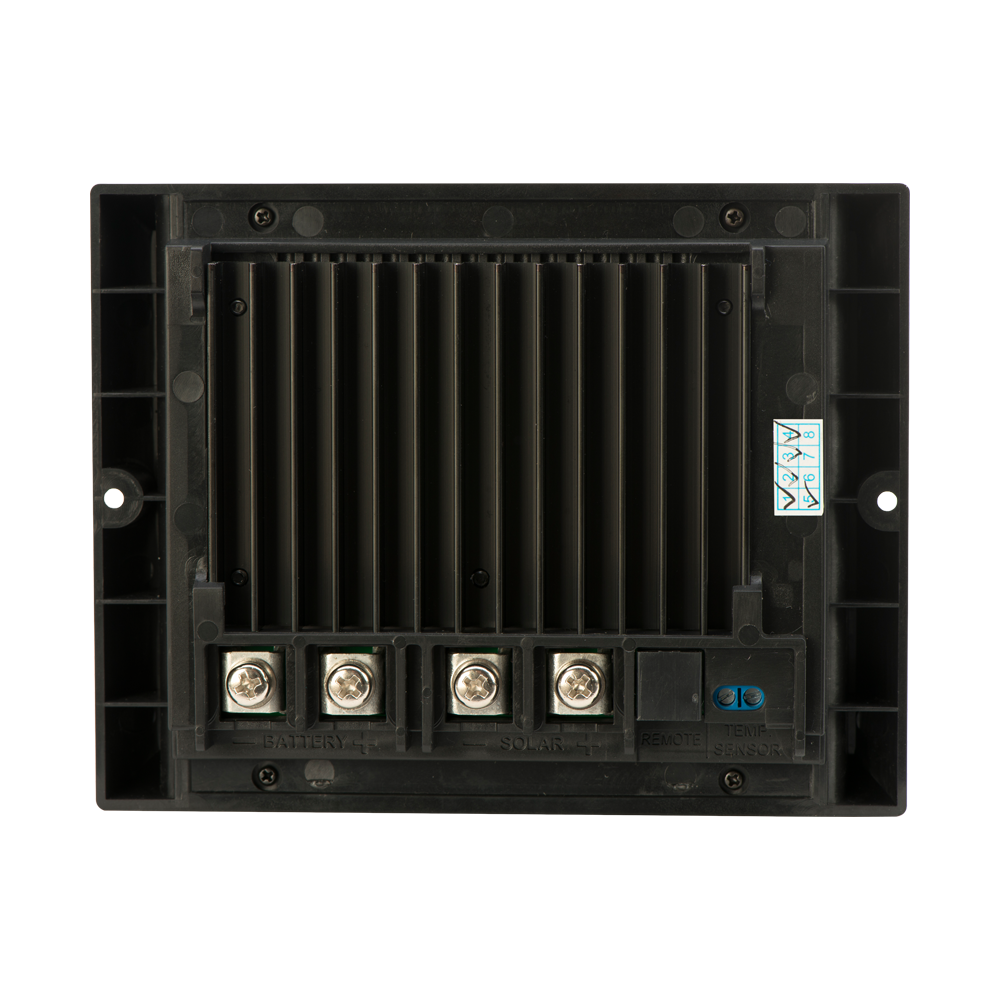

Our 30-amp charge controller is weather resistant and can be surface-mounted on your wall, or flush mounted inside the wall. It is compatible with our battery temperature cable and with our remote LCD display that lets you keep tabs on your power from wherever its most convenient for you.

30-Amp Charge Controller Manual
