Products / Charge Controllers / 8-Amp 5-Stage PWM Charge Controller



8-Amp 5-Stage PWM Charge Controller

PART NUMBER: ZS-8AW

Used in our 45-watt, 90-Watt Long portable kit and our solar maintainers, our smallest charge controller is compatible with gel, AGM, conventional lead-acid (wet), and calcium 12-volt batteries. It can manage up to 135 watts and 8 amps.

8-Amp Charge Controller Specs:

  • Watts:  135

  • Amps: 8

  • Lithium Compatibility: No

  • Remote Display Compatible: No

  • Battery Temperature Sensor Compatible: No

  • Mounting Options: Surface Only

*Fulfilled by our Zamp Certified Dealer “Specialized Products”


Protects and Regulates
All our charge controllers use pulse width modulation (PWM) and five stages of charging to regulate the flow the electricity to your battery. This protects your battery from overcharging, expands your battery’s lifespan, and keeps your panel safe from backflow electrical currents, among many other protections and benefits.

Monitors and Indicates

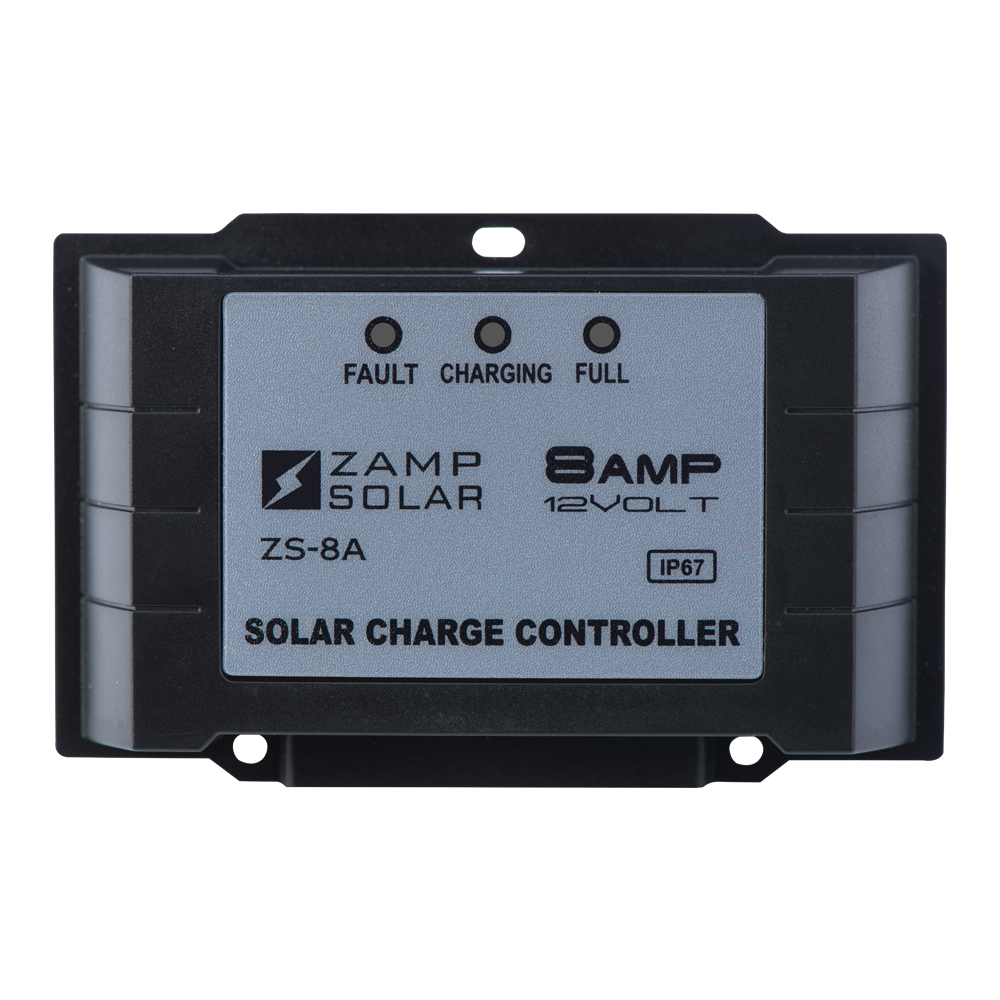

This weather resistant charge controller has three LED lights that let you monitor charging status, battery condition, and any system faults.

8-Amp Charge Controller Manual
