Products / Roof Mount / 90-Watt Long Roof Mount Kit



90-Watt Long Roof Mount Kit

PART NUMBER: KIT1007

Perfect for Airstreams, our 90-Watt “L” Series Kit is specially designed for narrow or curved roofs. This kit’s unique mounting feet were created to accommodate curved roofs, while long, narrow panels make the most of available space. Expand this kit up to 510 watts.

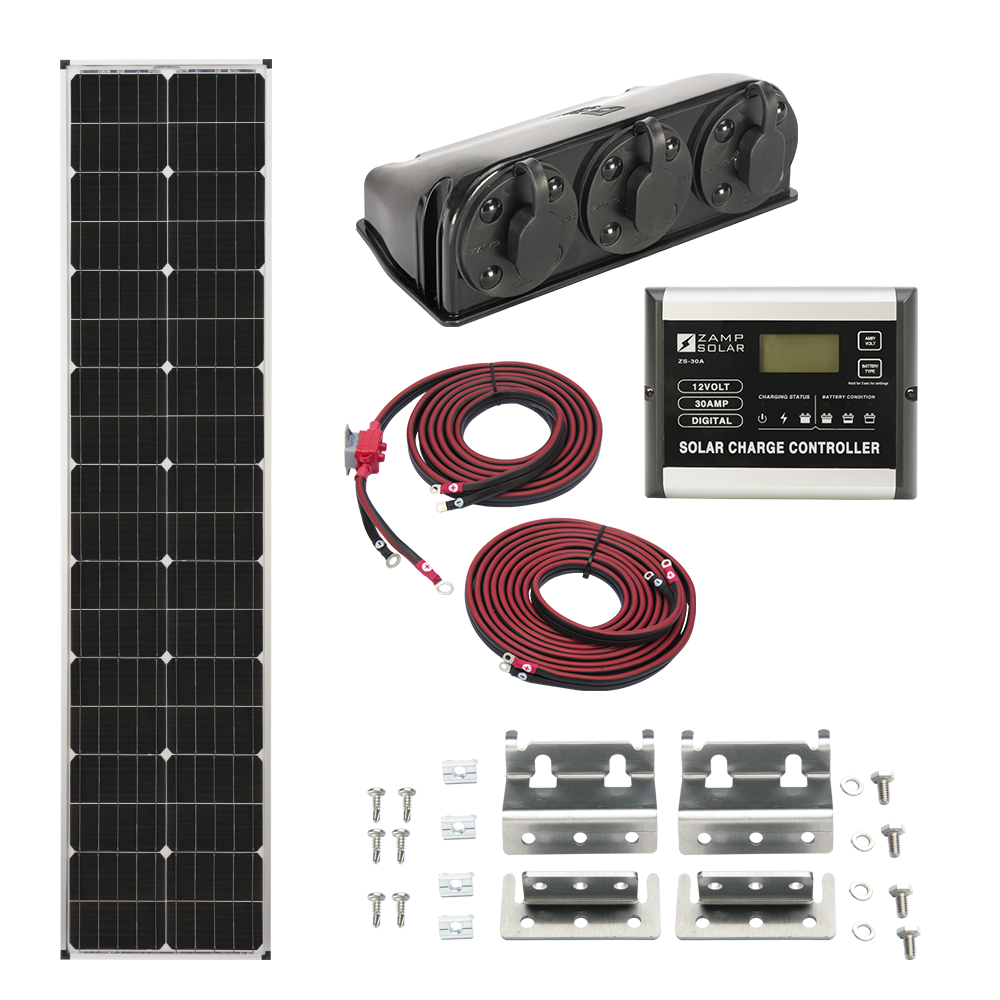

90-Watt Long Expansion Kit Includes:

  • 30-Amp, 5-stage PWM charge controller

  • Pre-assembled wiring harness

  • 3-port roof cap (ready for future expansions!)

  • Stainless steel mounting hardware and specialized feet for curved roofs

*Fulfilled by our Zamp Certified Dealer “Specialized Products”


Made in the U.S.
Handcrafted in Bend, OR using the highest grade monocrystalline solar cells for optimal output, our 90-watt panel is treated with anti-reflective coating to maximize light absorption.

Flexible and Durable
Our innovative Omni-Mount frame lets you to mount the panels wherever you need them, and our stainless steel mounting hardware ensure your panels won’t budge in route—no matter how far off-road you go.

Simple Installation
Installation is a breeze with our pre-assembled wiring harness that doesn’t require crimping tools. Since all of our products are compatible with each other, the included three-port roof cap makes expansions, upgrades or additions simple and easy… just plug in and go!

Reliable and Convenient
The digital 5-stage PWM charge controller lets you gauge your power with a glance, providing real time updates of volts, amps, and amp hours. Dual, self-resetting circuit breakers provide peace of mind by protecting your system from overcharging.

25 Year Output Warranty
Buy with confidence knowing that your solar investment will last for the long-haul.

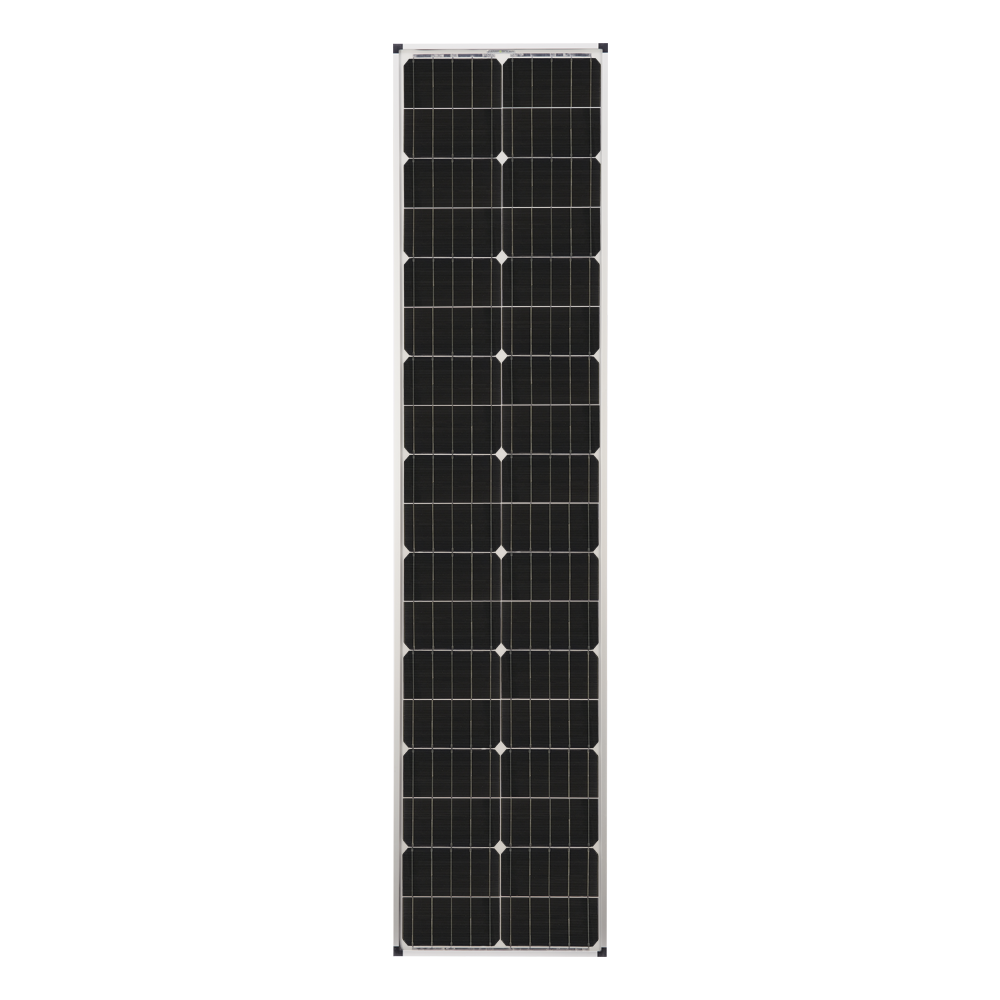

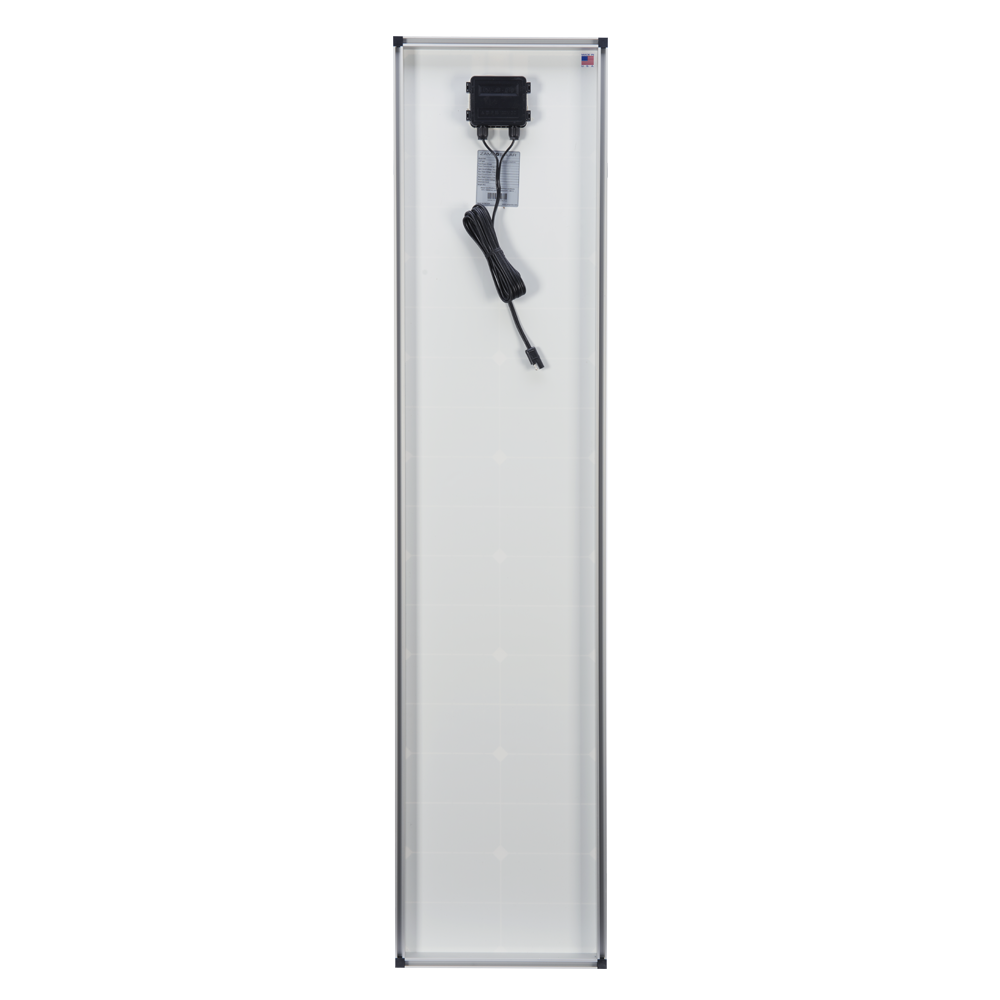

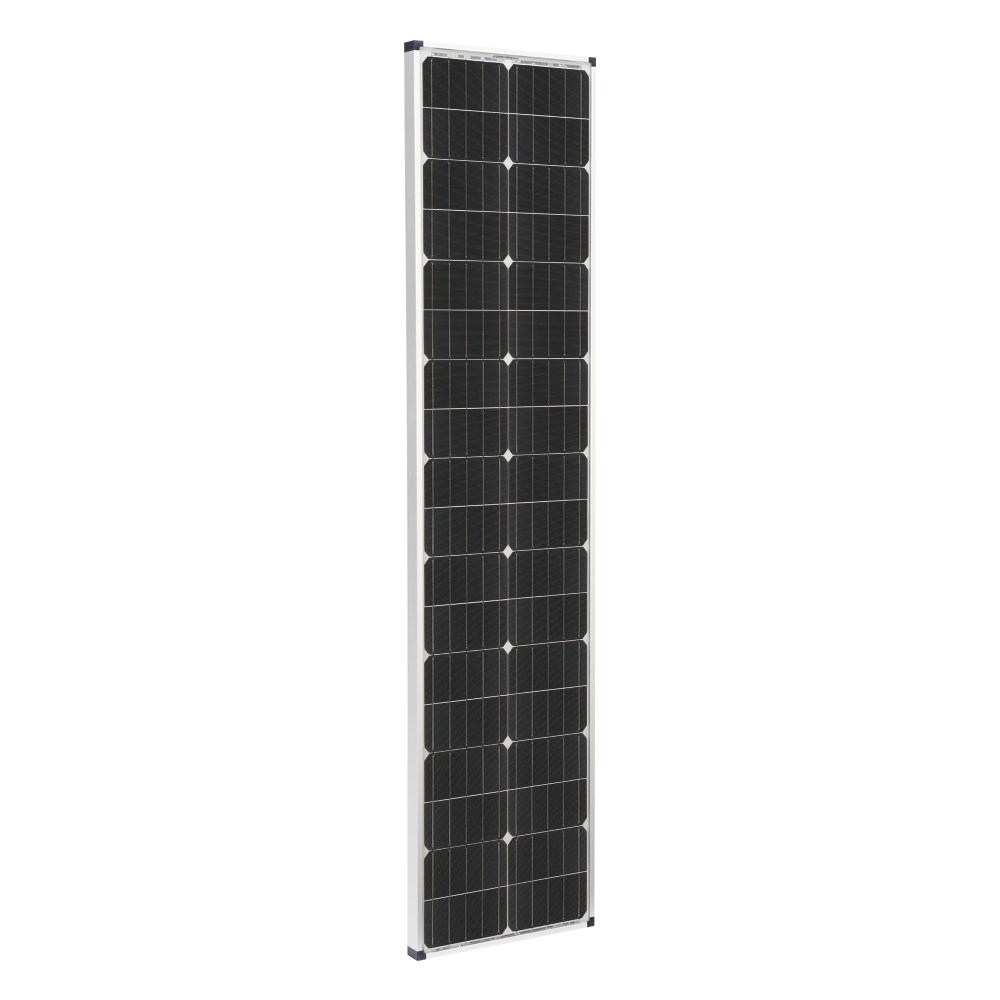

90-Watt Long Panel Specs:

  • 14.25 lbs

  • 58.3” x 13.6“ x 1.5”

  • 90-Watt Power Output

  • Generates 5 amps

  • 25-Year output warranty

Installation Guide

*See our Solar Sizing Chart to see what kit is right for your needs.
