The Zamp Solar 30 Amp MPPT charge controller efficiently transfers energy from your solar panels to the batteries in the least time possible while ensuring increased battery health and extended life. This mighty little unit can regulate over 440 Watts and is compatible with Lithium, Gel, AGM, Conventional lead-acid (wet) batteries, and LTO battery types.
Benefits of MPPT
The Maximum Power Point Tracking system monitors your solar panels' voltage and amperage output to harvest all energy generated. As the energy is stored in your battery, it is optimized. The most noticeable benefit is the amount of energy that can be run through the system during shorter and cloudier winter days. With up to 30% greater efficiency over PWM charging, the MPPT controller is the perfect upgrade to your solar system.
Protects and Regulates
This MPPT Solar Charge Controller protects your battery from overcharging, expands your battery's lifespan, and keeps your panel safe from back-flow electrical currents, among many other protections and benefits.
Monitors and Indicates
Its large digital display lets you monitor battery voltage, charging current, charging capacity (amps per hour), battery types, full charge, and system faults. Colored LEDs indicate operational status and battery conditions.
Flexible and Customizable

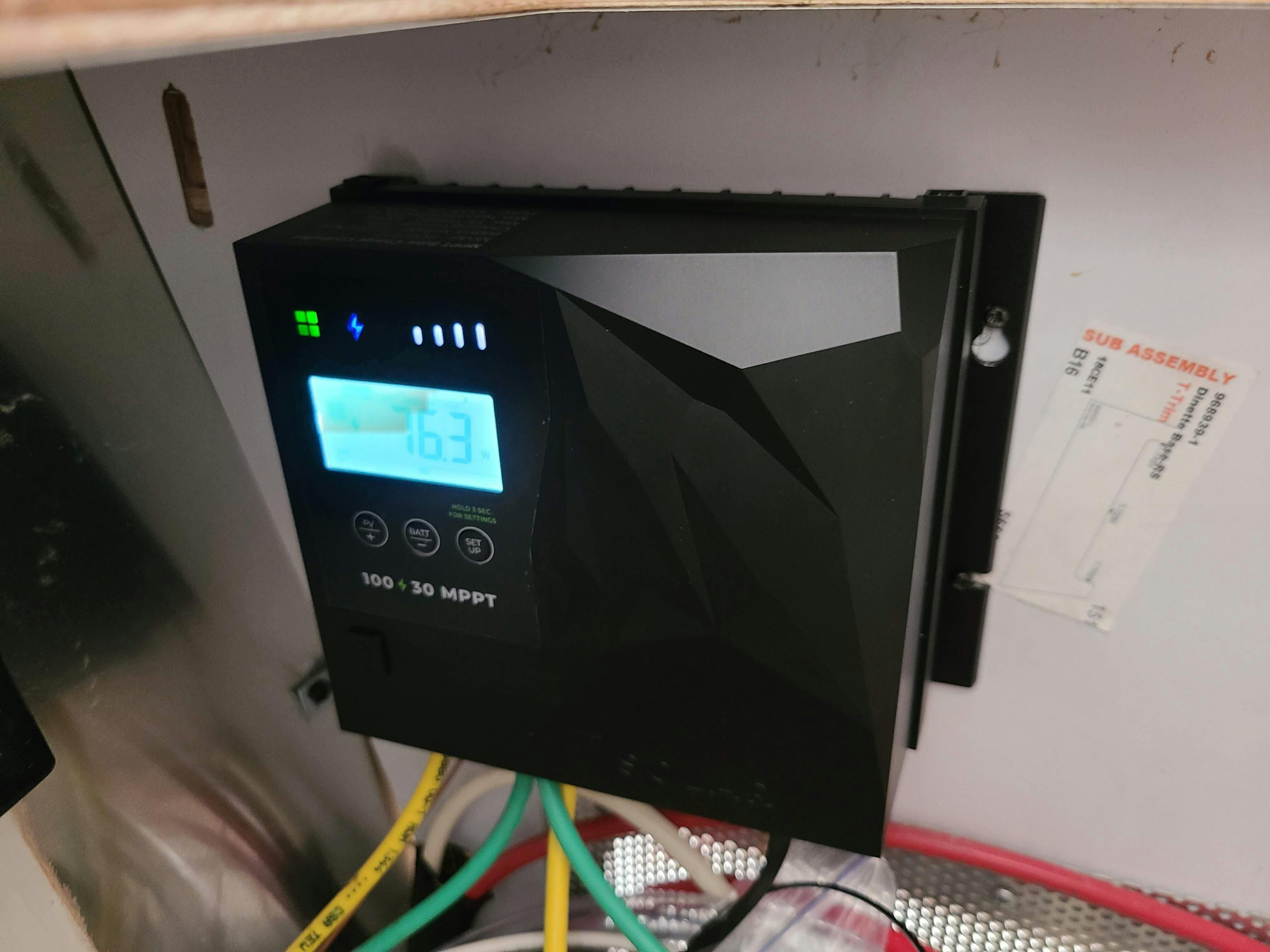

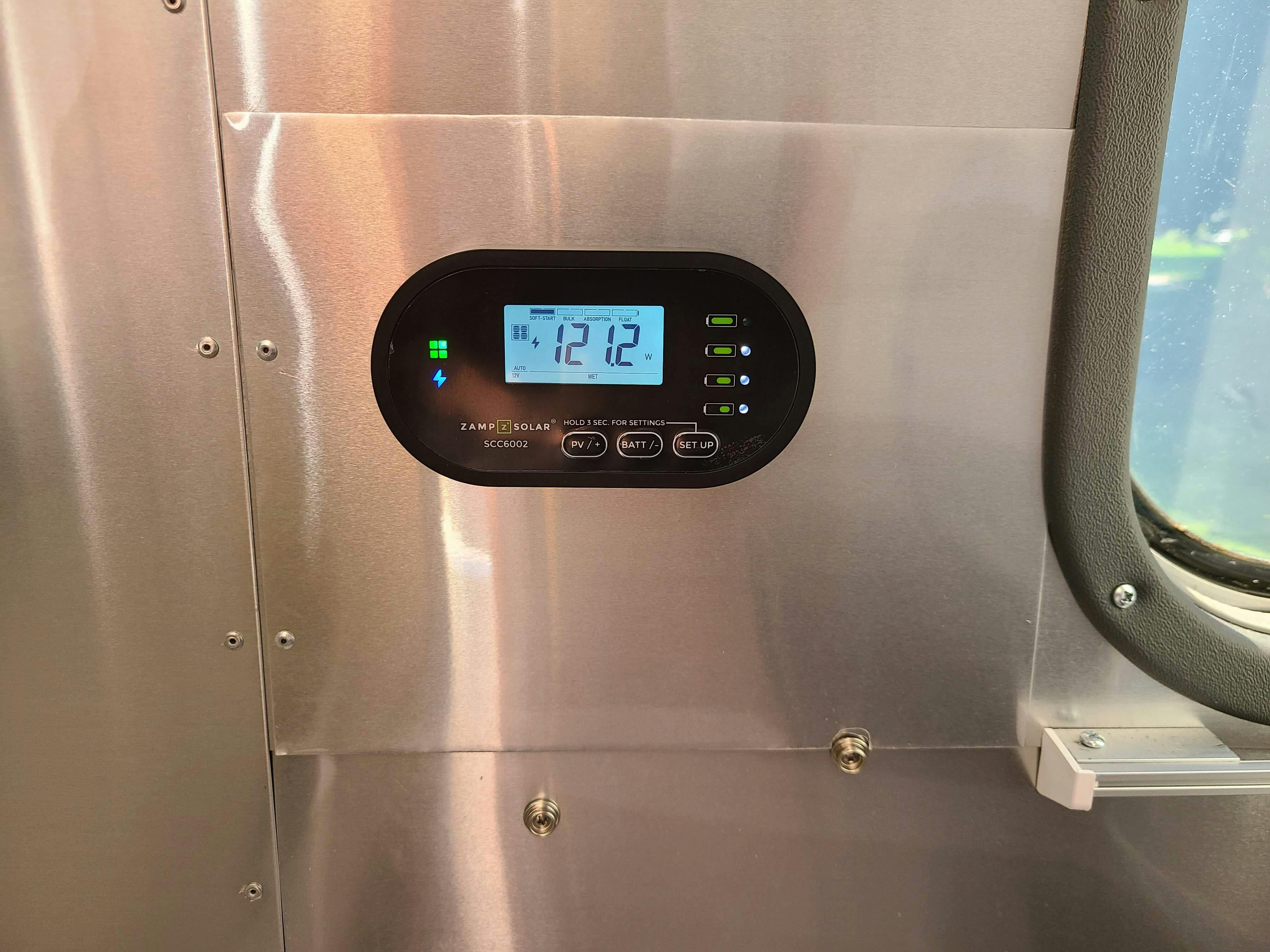

Our 30-amp MPPT charge controller is weather resistant and can be surface-mounted on your wall. In addition, it is compatible with our battery temperature cable and a remote LCD display that lets you keep tabs on your power from wherever it's most convenient.
Dimensions:
- Size: 6.5" Tall x 5.5" Wide x 3" Thickness
- Weight: 1.75 lbs.
30-Amp MPPT Charge Controller Specs: (Download Manual)
-
Max PV Watts: (12V) 440 Watts
-
Max Amperage: 30 Amps
-
Max PV Voltage: 100 Voc
-
Lithium Compatibility: Yes
-
Remote Display Compatible: Yes
-
Battery Temperature Sensor Compatible: Yes
-
Mounting Options: Surface Mount
-
Dimensions: 7.2" x 5.3" x 3"
-
Designed for: 12/24v Systems
